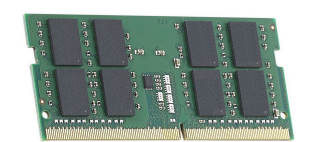

DDR4 SODIMM Unbuffered ECC (S3-D4SUE2CF-8G.F4)

DDR4 SODIMM Unbuffered ECC (S3-D4SUE2CF-8G.F4)

Product Details
260-pin DDR4 SODIMMs for embedded systems, edge computers, industrial PCs and compact workstations. Built as a System Builder part: a controlled bill of materials, full lot traceability and supply that continues long after consumer modules move on. Optima keeps the PCB and critical components fixed, with only the DRAM chips moving to qualified equivalents under the same part number. Optima+ locks every component, and any change gets a new part number.

Item No.S3-D4SUE2CF-8G.F4
Product TypeMemory Module
SeriesOptima
TechnologyDDR4
InterfaceSODIMM
ControlUnbuffered
ECCECC
SpeedPC4-22400
Rank2
Module Configuration1GBx72
DRAM Configuration512MBx8
DRAM Density4Gb
DRAM Count18
DRAM Pin Count78-Ball
Pin Count260-pin
RefreshAuto Self
Operating TemperatureCommercial: 0 to +95C
Storage Temperature-55 to +95 C
Size8GB
Voltage1.2V
Warranty5 Year
Optima: BOM control

Critical parts fixed. DRAM may move to qualified equivalents under the same part number.

Optima+: 100% BOM control

Every part locked. Any change gets a new part number.

Same specifications. Our sales team will help you choose.

Similar parts

View all →
Part numberCapacityTechnologyModuleSpeedECCControlTemperature
S3-D4DUN2CC-4G.D24GBDDR4DIMMPC4-17000Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CD-4G.D34GBDDR4DIMMPC4-19200Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CE-4G.D34GBDDR4DIMMPC4-21300Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CF-4G.D34GBDDR4DIMMPC4-22400Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CC-8G.D28GBDDR4DIMMPC4-17000Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CD-8G.D38GBDDR4DIMMPC4-19200Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CE-8G.D38GBDDR4DIMMPC4-21300Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CF-8G.D38GBDDR4DIMMPC4-22400Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CC-16G.D216GBDDR4DIMMPC4-17000Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CD-16G.D316GBDDR4DIMMPC4-19200Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CE-16G.D316GBDDR4DIMMPC4-21300Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CF-16G.D316GBDDR4DIMMPC4-22400Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CC-32G.D232GBDDR4DIMMPC4-17000Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CD-32G.D332GBDDR4DIMMPC4-19200Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CE-32G.D332GBDDR4DIMMPC4-21300Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4DUN2CF-32G.D332GBDDR4DIMMPC4-22400Non-ECCUnbufferedCommercial 0°C to 95°C
S3-D4MRE1CD-4G.C94GBDDR4Mini-DIMMPC4-19200ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CE-4G.C94GBDDR4Mini-DIMMPC4-21300ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CF-4G.C94GBDDR4Mini-DIMMPC4-22400ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CH-4G.C94GBDDR4Mini-DIMMPC4-25600ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CD-8G.C98GBDDR4Mini-DIMMPC4-19200ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CE-8G.C98GBDDR4Mini-DIMMPC4-21300ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CF-8G.C98GBDDR4Mini-DIMMPC4-22400ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CH-8G.C98GBDDR4Mini-DIMMPC4-25600ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CD-16G.C916GBDDR4Mini-DIMMPC4-19200ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CE-16G.C916GBDDR4Mini-DIMMPC4-21300ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CF-16G.C916GBDDR4Mini-DIMMPC4-22400ECCRegisteredCommercial 0°C to 95°C
S3-D4MRE1CH-16G.C916GBDDR4Mini-DIMMPC4-25600ECCRegisteredCommercial 0°C to 95°C
S3-D4VUE2CC-4G.E04GBDDR4VLP DIMMPC4-17000ECCUnbufferedCommercial 0°C to 95°C
S3-D4VUE2CD-4G.E04GBDDR4VLP DIMMPC4-19200ECCUnbufferedCommercial 0°C to 95°C
