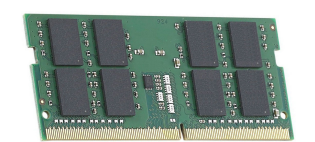

DDR4 SODIMM Unbuffered Non-ECC (S3-D4SUN1CD-64G.C7)

DDR4 SODIMM Unbuffered Non-ECC (S3-D4SUN1CD-64G.C7)

Product Details
260-pin DDR4 SODIMMs for embedded systems, edge computers, industrial PCs and compact workstations. Built as a System Builder part: a controlled bill of materials, full lot traceability and supply that continues long after consumer modules move on. Optima keeps the PCB and critical components fixed, with only the DRAM chips moving to qualified equivalents under the same part number. Optima+ locks every component, and any change gets a new part number.

Item No.S3-D4SUN1CD-64G.C7
Product TypeMemory Module
SeriesOptima
TechnologyDDR4
InterfaceSODIMM
ControlUnbuffered
ECCNon-ECC
SpeedPC4-19200
CLCL17
Rank1
Module Configuration8GBx64
DRAM Configuration8Gb x8
DRAM Density64Gb
DRAM Count8
DRAM Pin Count78-Ball
Pin Count260-pin
RefreshAuto Self
Operating TemperatureCommercial: 0 to +95C
Storage Temperature-55 to +95 C
Size64GB
Voltage1.2V
Warranty5 Year
Optima: BOM control

Critical parts fixed. DRAM may move to qualified equivalents under the same part number.

Optima+: 100% BOM control

Every part locked. Any change gets a new part number.

Same specifications. Our sales team will help you choose.
